AUTO DOOR

SWING DOOR OPERATOR...........................SLIDING DOOR OPERATOR

* DORMA CD 80... ...........................* DORMA ES 90-EC2
.................................                                             * BWNEZY-FIT EL300

cd80

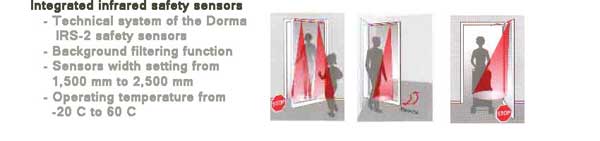

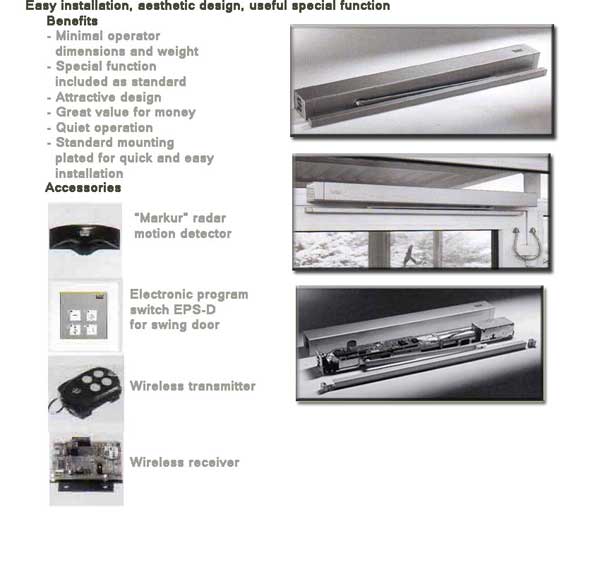

SWING DOOR OPERATOR : DORMA CD 80

Operator technical data
Closing forces
EN 4
Dimension :
Height
Width/Lenght
Depth
70 mm
660 mm
90 mm
Weight inct. mounting plate
8.5 kg
Opening angle

At least 100 o
in any fixing position
Supply voltage
230 V, 50/60 Hz
Power supply for external accessories
24 V DC, 600 mA
Class of protection
IP 20
TUV type - approved
Complaint with the Low Voltage Directive and the EMC Directive
Manufactured to ISO 9000

< UP >

es90

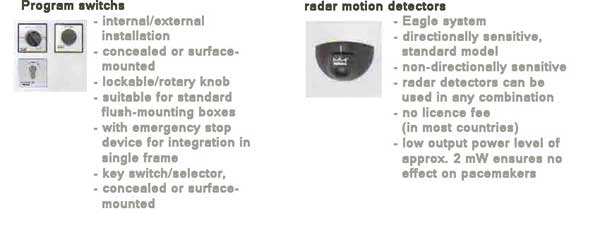

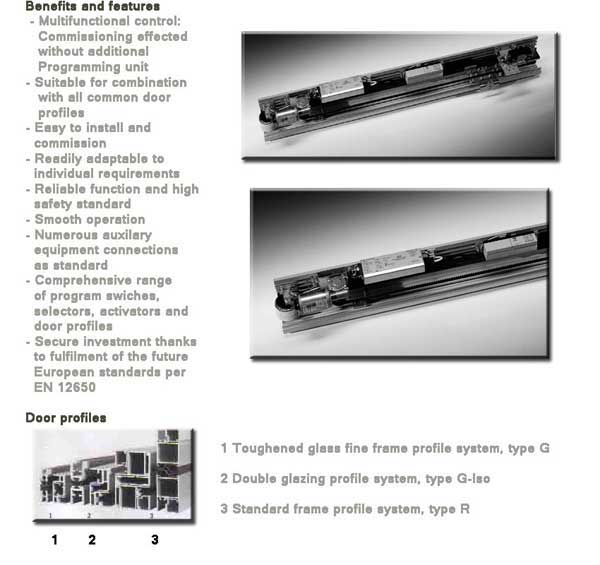

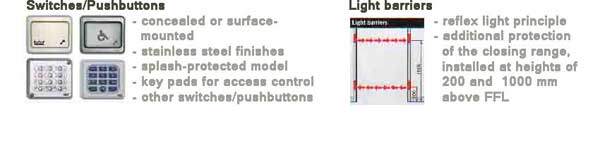

SLIDING DOOR OPERATOR: DORMA ES 90 - EC2



Technical data
Height

200 mm
Installation depth
171 mm
Opening and closing force max. 150 N

Opening speed (incrementally adjustable)
10 - 50 cm/s
Closing speed (incrementally adjustable)
10 - 40 cm/s
Hold - open time
0.5 - 30 sec.
Power supply data
230 v, 50/60 Hz
Power consumption
180 W
Class of protection
IP 20
Compliant with EU low-voltage directive
Quality assured manufacture to ISO 9001

< UP >



bwn

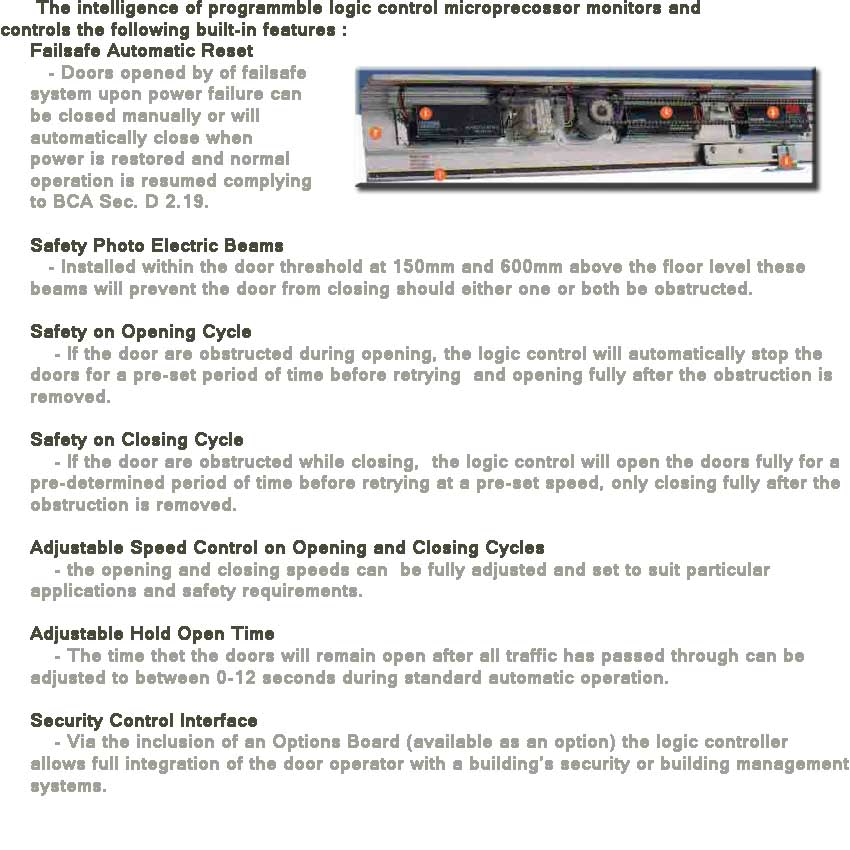

SLIDING DOOR OPERATOR : BWNEZY-FIT EL300

< UP >
